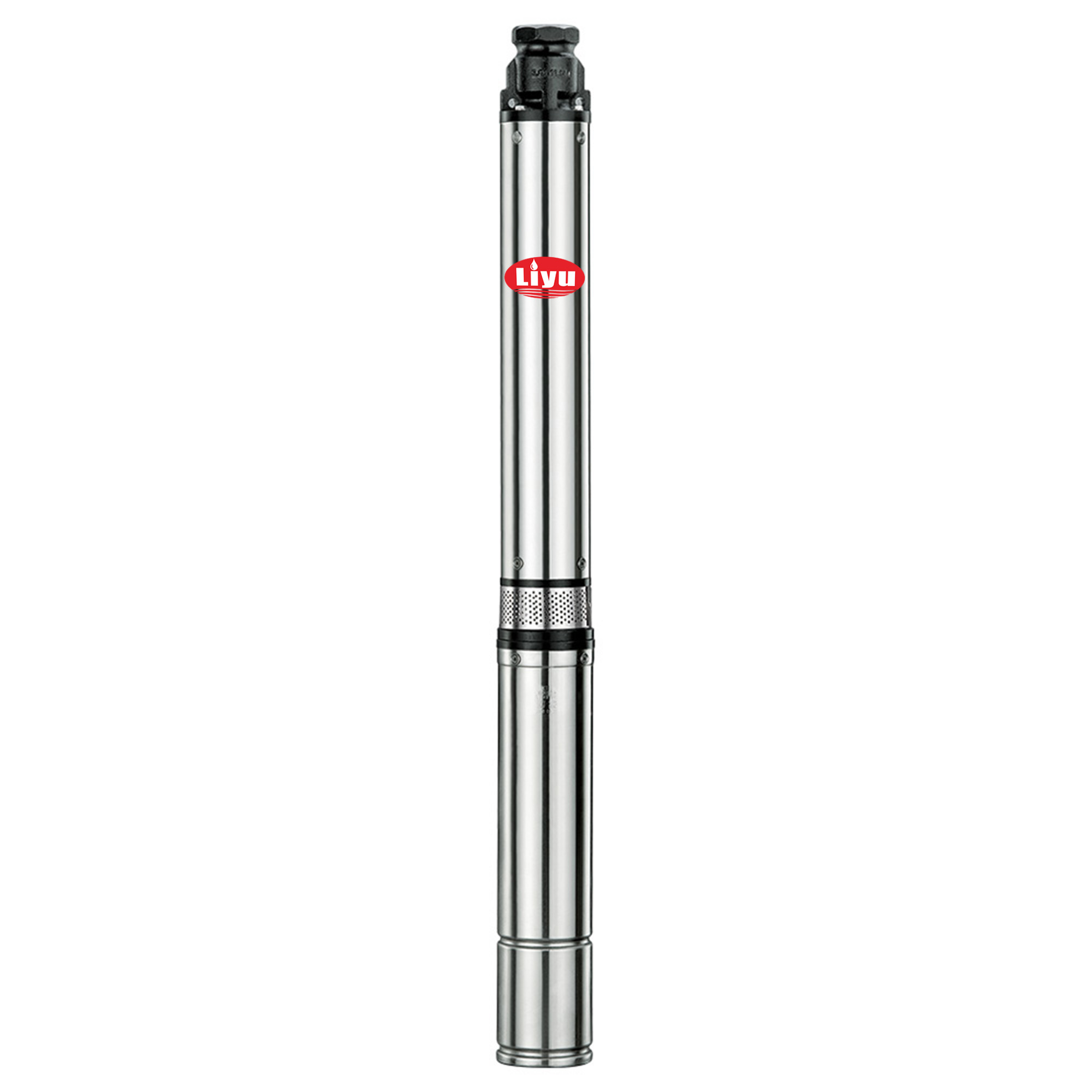

4QJ 10 Submersible Pump
Applications
For water supply from wells or reservoirs.
For domestic use for civil and industrial applications.
For garden use and irrigation.
OPerating conditions
Maximum fluid temperature up to +35℃.
Maximum sand content:1%.
Maximum immersion:120m.
Minimum well diameter:4".
Motor and pump
Rewindable motor
Single-phase: 150V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NeMA dimension standards

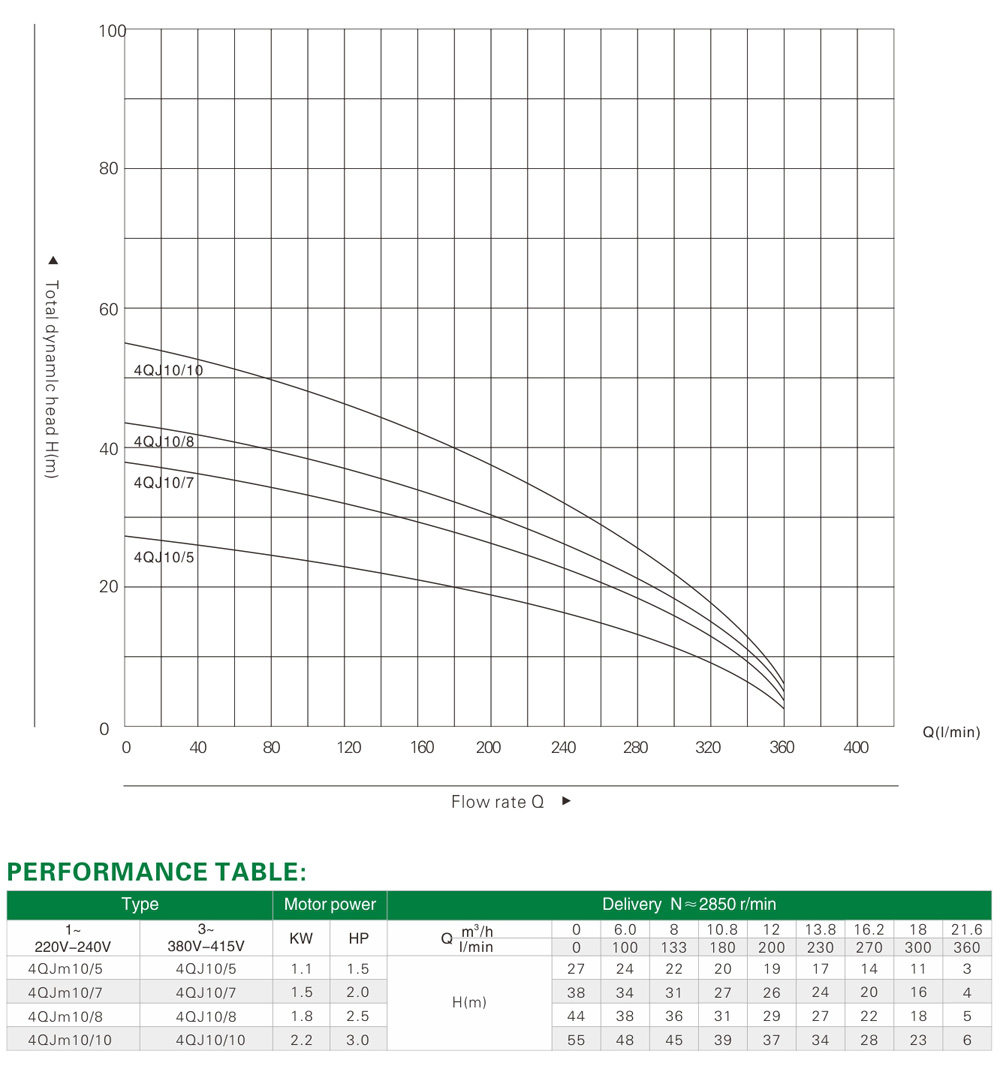

Curve tolerance according to ISO 9001
Internal diameter of outlet
1.0", 1.25", 1.5", 2"
Warranty:1 year
(According to our general sales conditions).
