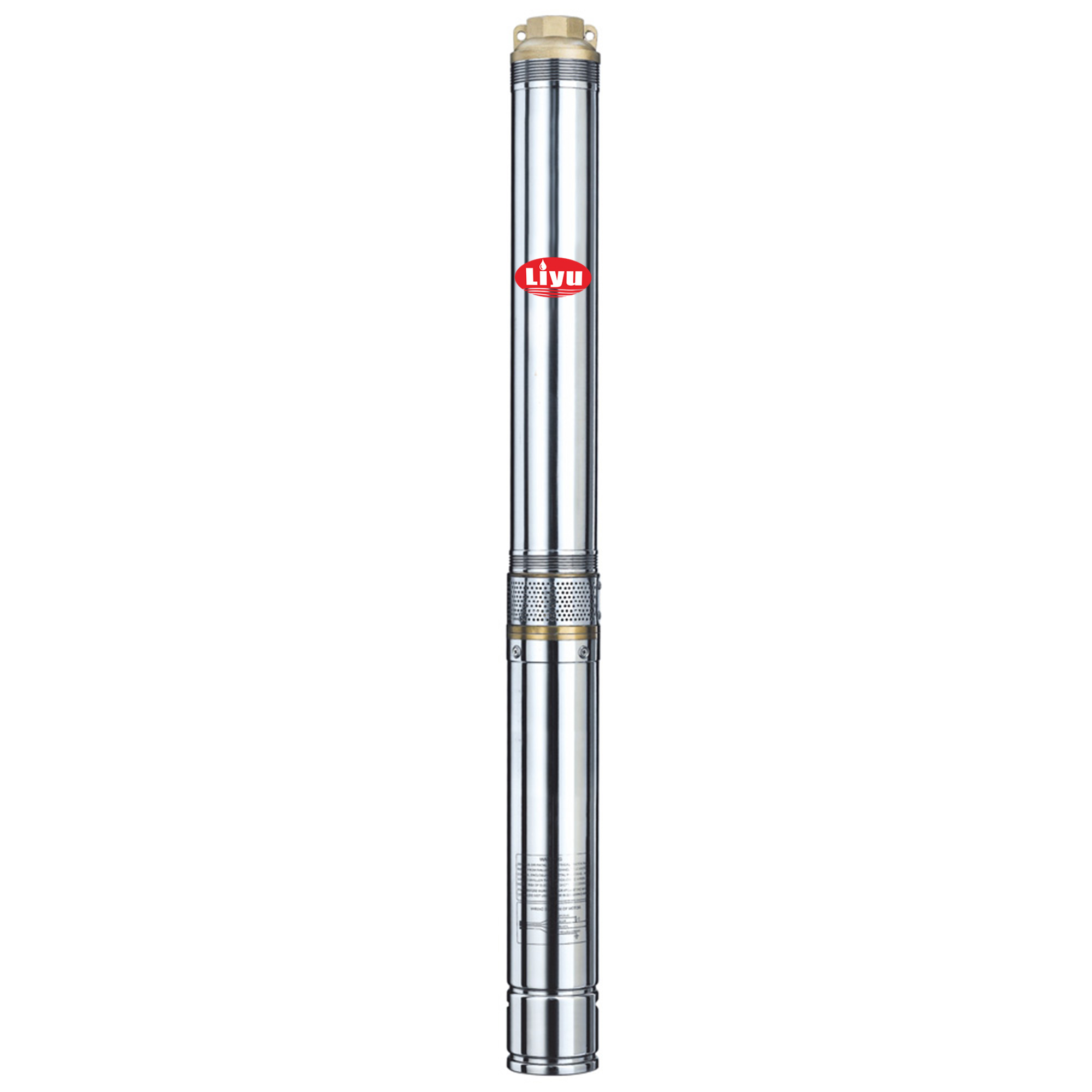

3SD 1.8 Strong Anti-sand Series
Applications
For water supply from wells or reservoirs.
For domestic use for civil and industrial applications .
For garden use and irrigation.
OPerating conditions
Maximum fluid temperature up to +35℃.
Maximum sand content:2%.
Maximum immersion:120m.
Minimum well diameter:3".
Motor and pump
Rewindable motor
Single-phase: 150V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO 9001
Internal diameter of outlet
1.0", 1.25"
Warranty:1 year
(According to our general sales conditions).
